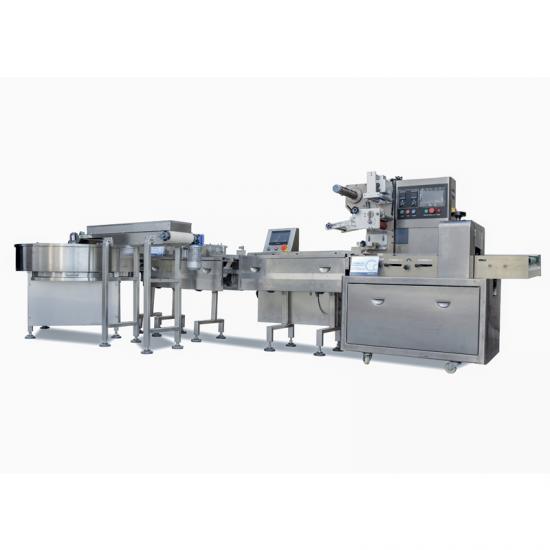

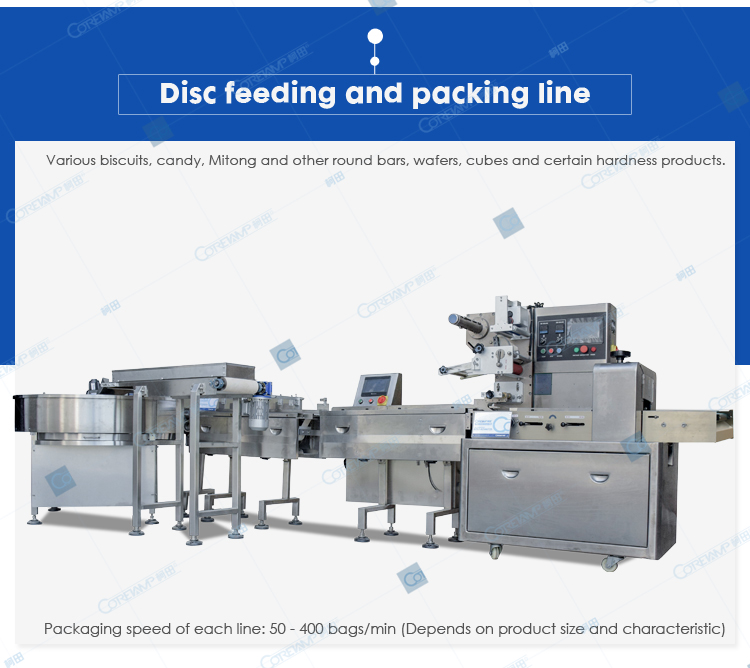

Automatic feeding and sealing and Packaging line machine for mooncake/small cake/biscuits.
Various biscuits,candy,rice krispies treats and other round bars,wafers,cubes and certain hardness products.Clear-up,feeding and packing automatically without man-powder operation.
Machine type:
VT-1-1DPackaging speed:
50-400bag/MinutesPackaging size:
2-150mmMachine material:
304 stainless steelAutomatic food feeding and packaging line for mooncake/small cake/biscuits/candy/rice krispies treats
Introduction:

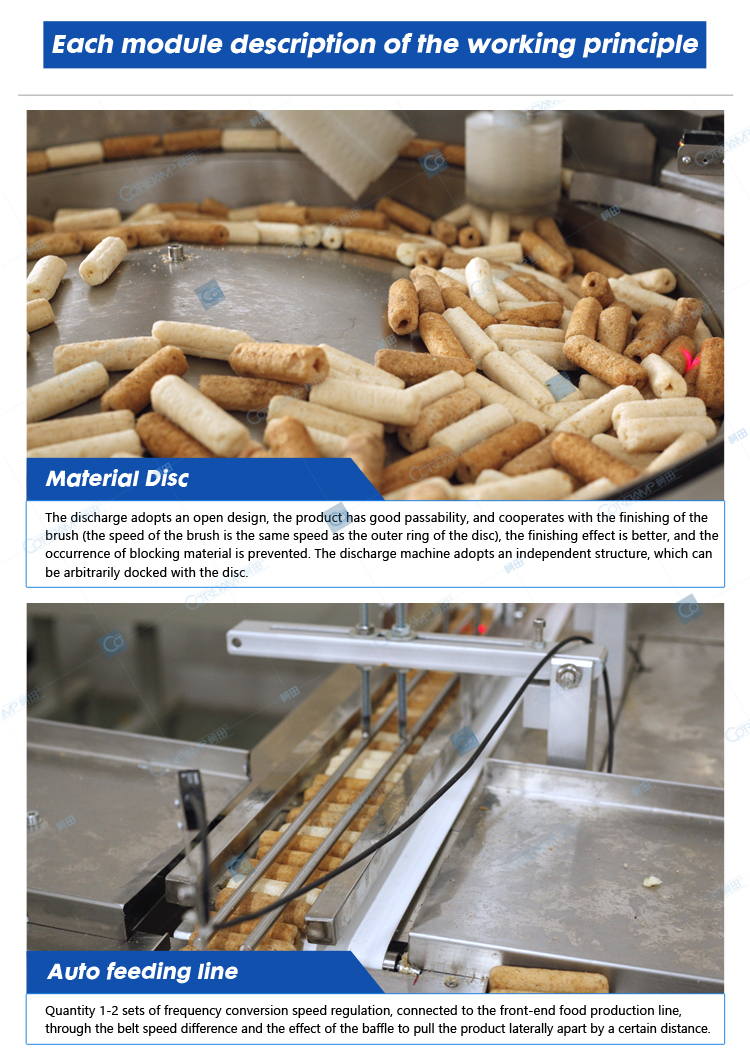

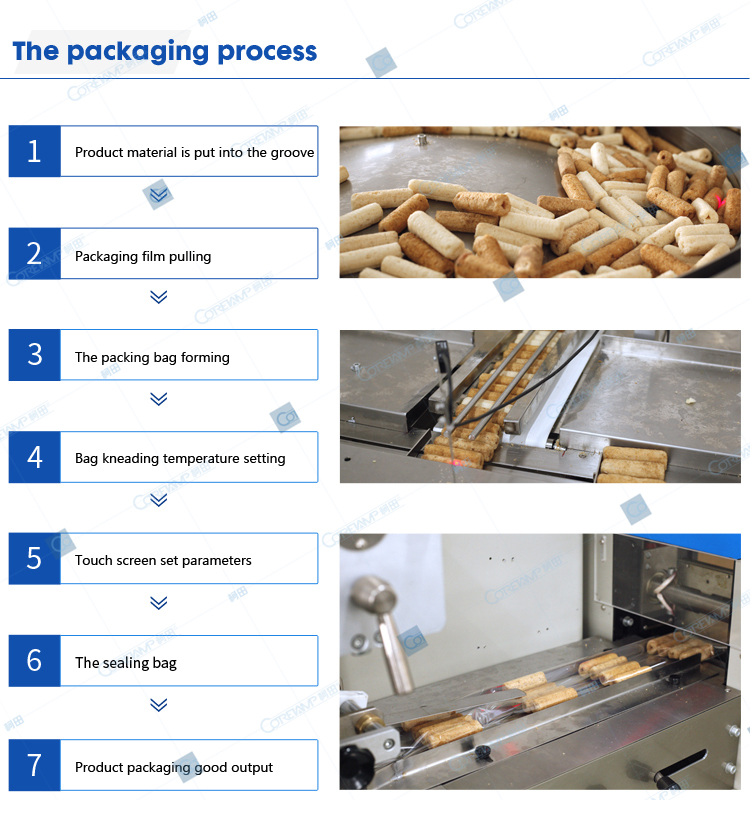

The main material distribution system of automatic pillow packaging line adopts the central integrated control system, which automatically adjusts and distributes according to the incoming speed and quantity of products.Through servo and PLC control, the products can enter into the packing system in an orderly, smooth and non-damaging way, so as to realize product transportation, finishing and queuing, automatic feeding, accurate positioning, and no empty bag multi-bag phenomenon.According to the production capacity, can choose multistage packing unit, packaging unit number (packaging machine can be selected according to the product). Packaging strips automatically distribute up to several thousand products per minute to different individual flow packaging machines. Work with the bakery production line so that there is no contact and distraction with employees and high efficiency.
Packaging materials: OPP, CPP, PET aluminum-plated film, aluminum-plastic film, paper-plastic, paper glue and other single-layer and multi-layer heat sealing materials are recommended to use the outer LAYER OF PET thickness 0.013mm, the inner layer of CPP thickness 0.023 ~ 0.027mm, composite low-temperature film
Application：
Automatic feeding packing line machine is suitable for packing solid objects with regular size ( Round, Oval ). Such small bread, biscuits, cookies, cupcake, moon cake, Wafer stick, Wafer roll, Beef roll, hard candy, Marshmallow, etc.
|
Model |
VT-1-1 |
|
Main feeding unit |
600/800/1000/1200 mm |
|
Bag Width |
30-210mm |
|
Bag Length |
65-500mm |
|
Packing speed |
40-300bag/min |
|
General power |
220V 50/60HZ 2.6KW |
|
Feeding speed |
Depended on actual project |
|
Weight |
1200 Kg |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
