Vertical Form Fill Seal Machine

Coffee powder bag packing machine

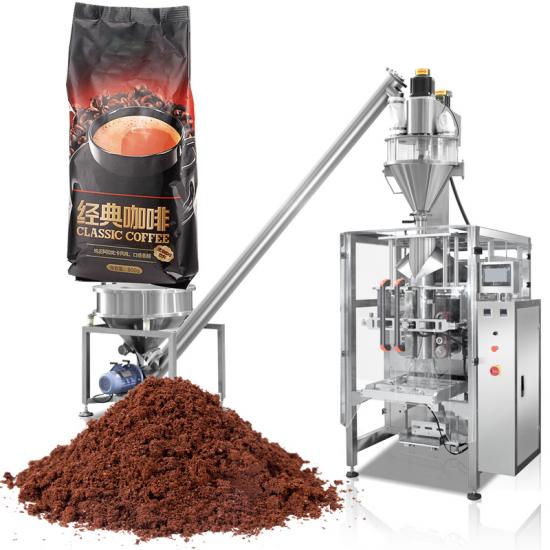

Coffee powder bag packing machine

The ZV-420D packaging machine is suitable for coffee powder in different bag types.

Packaging Range: 150 grams - 5000 grams.

  • Machine type:

    ZV-420D
  • Packaging speed:

    5-60bag/Minutes
  • Packaging size:

    80-300mm
  • Machine size:

    L:1217*W:1015*H:1343(mm)
  • Machine material:

    304 stainless steel
  • Product Details


Product description:




Specifications:

Types ZV-420
Film width
Max.420mm
Bag length
80-300mm
Bag width
60-200mm
Film roll diameter
Max.320mm
Packing speed
5-60bag/min
Measuring range
2000ml
Film thickness
0.04-0.08mm
Power supply
220V, 50/60HZ , 3KW
Machine size (L*W*H)
L1217*W1015*H1343mm
Machine weight
about 650kgs
Film materail
BOPP/CPP,  BOPP/VMCPP,  BOPP/PE,  PET/AL/PE ,  PET/PE


Applications:

This set is suitable for packing coffee powder in different bags

coffee powder package




Features:


1. By screw machine complete measuring, filling, etc., suitable for measuring powder material.
2. The servo drive system, has the advantages of high precision, stable performance.
3. Stainless steel open container clean and convenient.
4. Equipped with safety protection so as to meet the requirements of enterprise safety management.
5. Intelligent temperature control, accurate temperature control, ensure nice flat seal.
6. Plc double pull or single tensile membrane structure chart system, motor sealing and cutting positions adopt automatic correction device.
7. Constiute a large display touch screen drive control core, maximum limit to improve  the control precision, relibaility and the intellectualized degree of the machine.
8. The machine and measuring comfiguration can be done automatically measuring, feeding, filling bag, inflatable (exhaust), date printing, full packaging process and automatic counting.
9. Perfect automatic alarm protection function, minimize loss, help timely troubleshooting.

10. Packaging design diversified, back closure, angle bag, punching, etc.

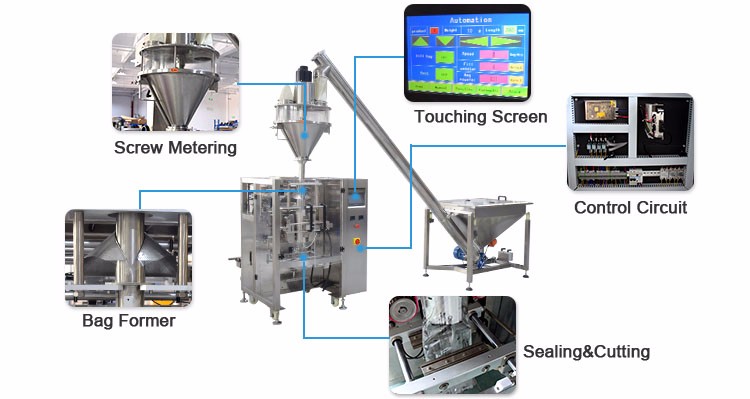

Option:

1. ZV packaging machine

2. Augur filler

3. Screw conveyor

4. Finished product conveyor


powder packaging machine

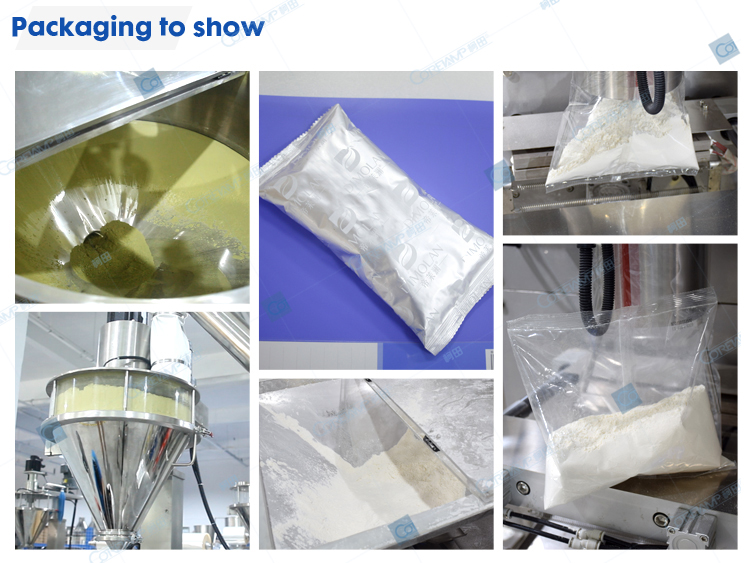

Packaging display

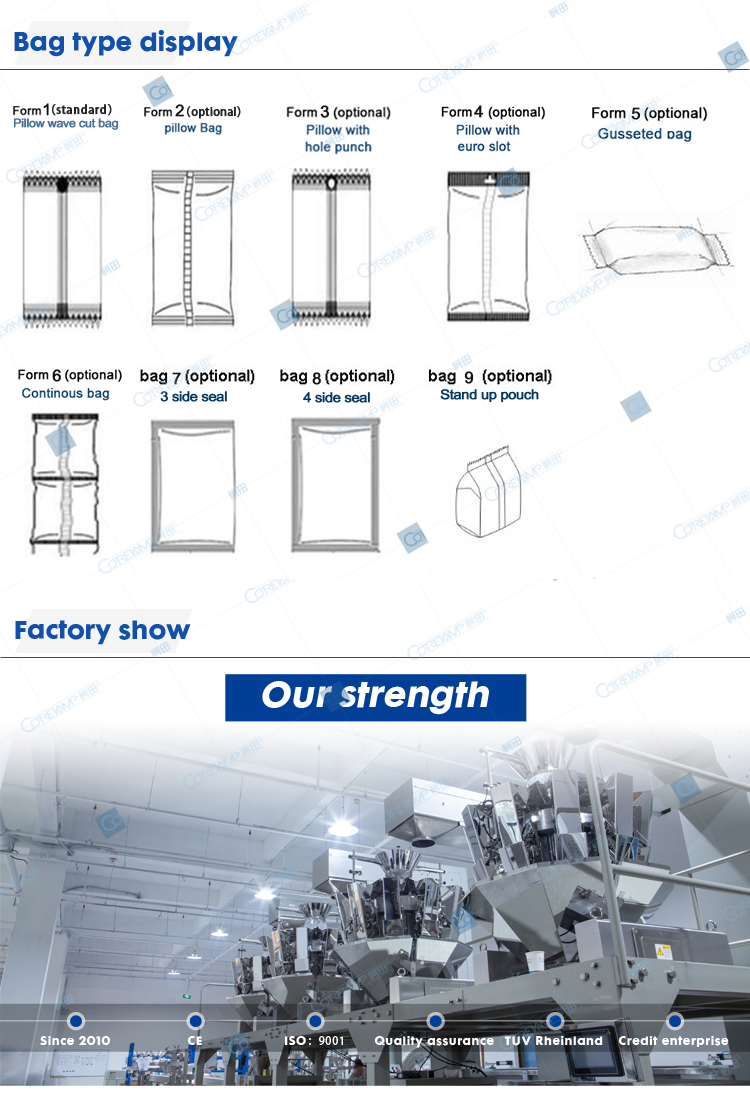

Bag type display

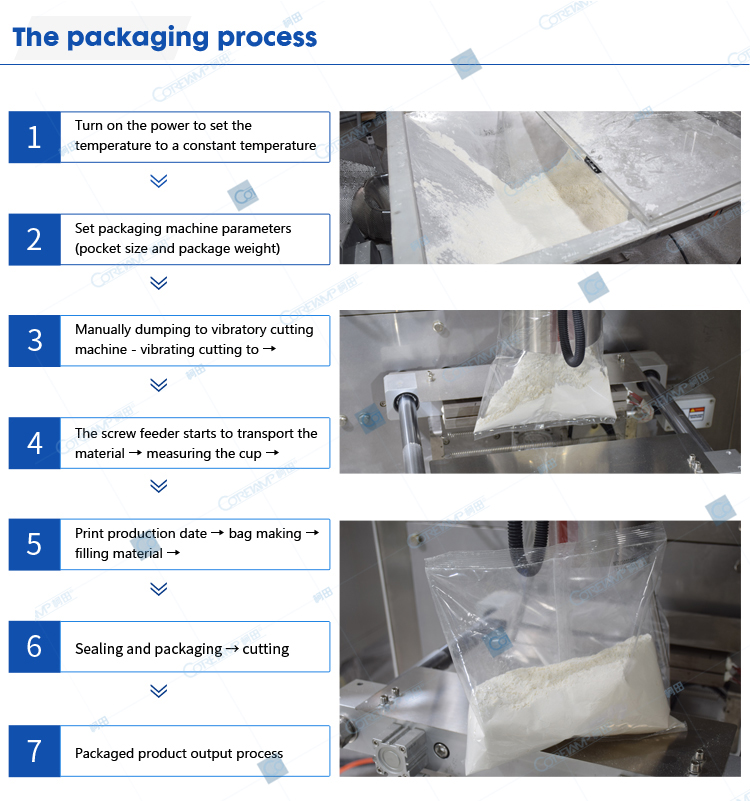

Packaging process

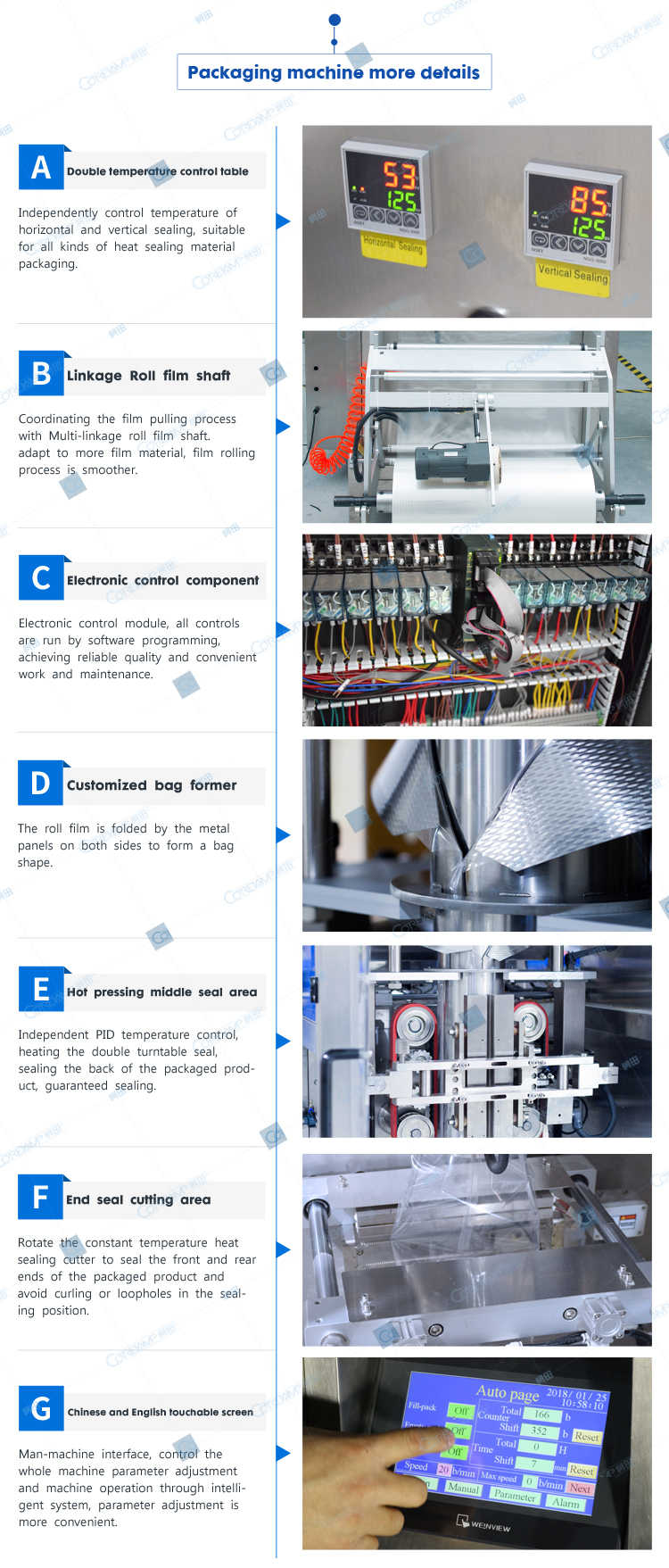

More details

Quality assurance
