Fastener Packaging Machine

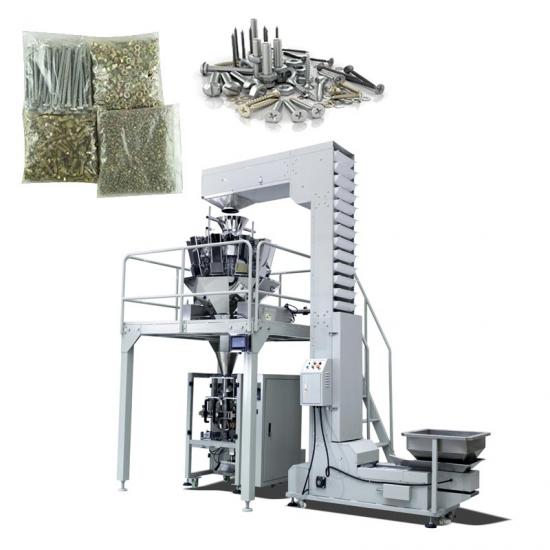

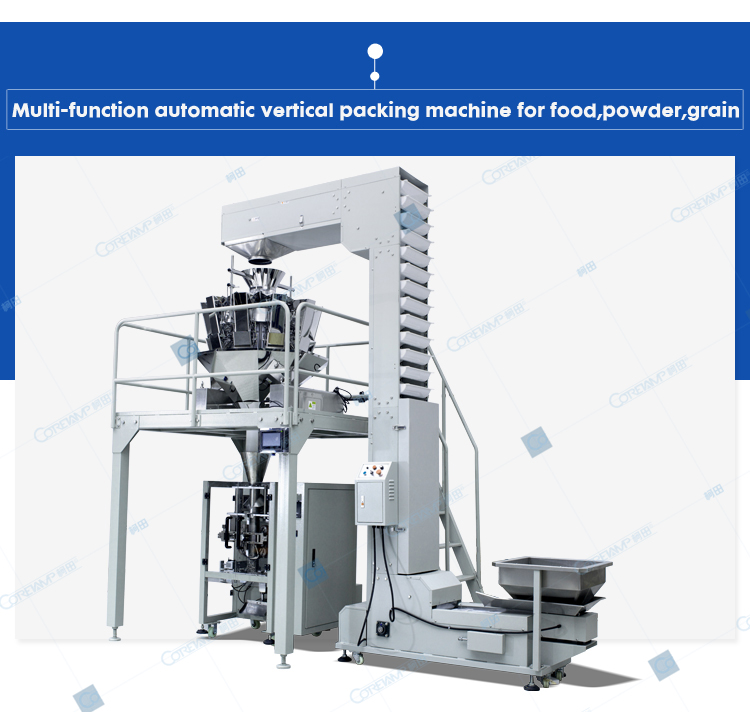

Hardware / Fastener Multihead Weigher packaging machine

Hardware / Fastener Multihead Weigher packaging machine

Suitable for weighing and packaging of various hardware and fasteners, such as various sizes of nails, screws, nuts, bolts, rivets, buttons, etc. High-precision and full automatic control.

  • Machine type:

    ZV-420A
  • Packaging speed:

    5-60 bags / min
  • Packaging size:

    60-200mm(Width) 80-300mm(Length)
  • Machine size:

    (L)1217*(W)1015*(H)1343mm
  • Machine material:

    304 Stainless Steel

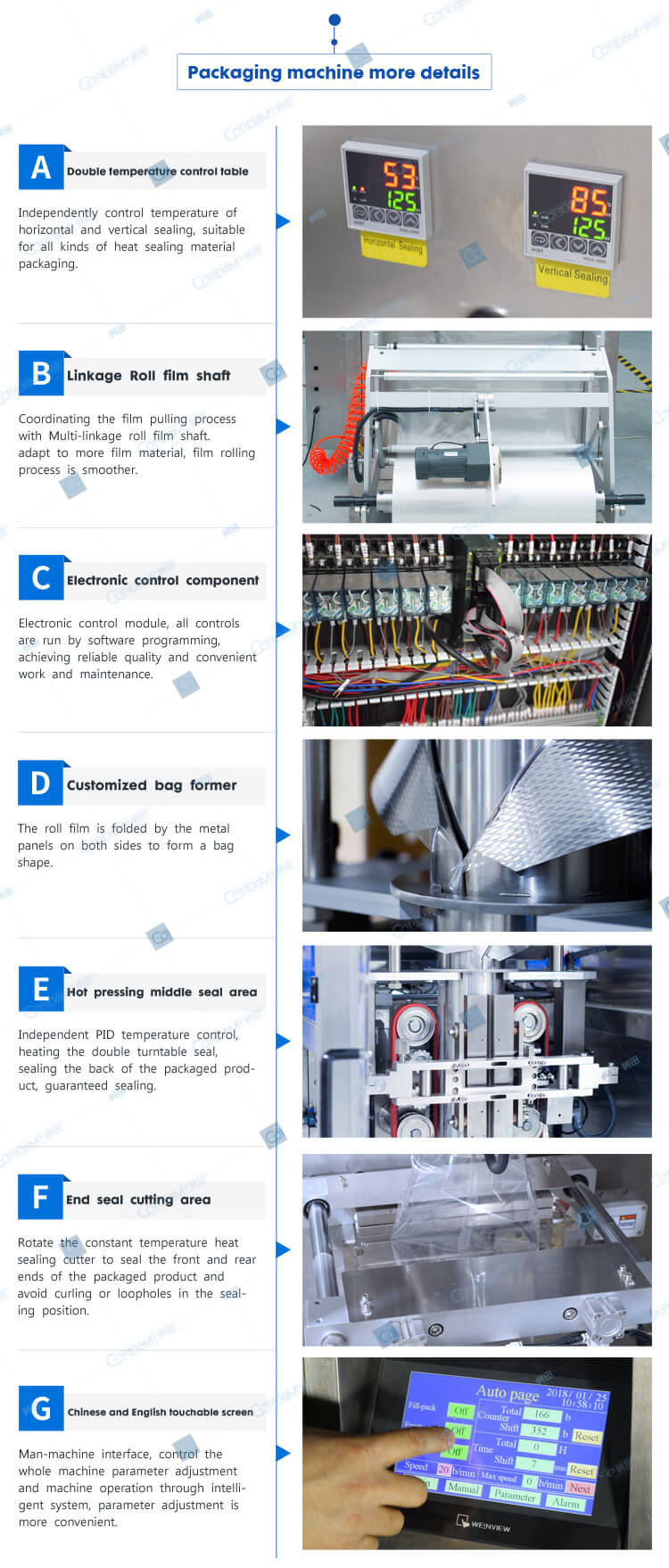

  • Product Details

fastener

Option:

1. ZV series machine
2. Z type conveyor
3. Finished protuct conveyor
4. 10 heads combination weigher

Feature:

1. This machine is linkage control, automatic feeding, no packing without
materials, work stable.
2. Uses Japanese technology, advanced design, easy to operate
& maintain, the price is competitive.
3. Both domestic & foreign best seller in the past 10 years.
4. Material conveyor design simplicity, work stable and quite.
5. The platform is sold will not affect the measurement accuracy of the
combination weigher.
6. It can match with other equipment, such as production line, metal detector,
check weigher, case packer, save labor cost.

Applications:

lt's suitable to use in packing the high accuracy and easy fragile mate ria such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling,chocolate, pet food, small hardwares. Medicine, etc.


 Type  ZV-420A  ZV-520A  ZV-720A
 Film Width  Max.420MM  Max.520MM  Max.720MM
 Bag Length  80-300MM  80-350MM  100-500MM
 Bag Width  60-200MM  100-250MM      180-350MM
 Film Roll Diameter  Max.320MM  Max.320MM  Max.320MM
 Film Thickness  0.04-0.12MM  0.04-0.12MM  0.04-0.12MM
 Range of Measurement  150-1500ml  2000ml  4000ml
 Packaging Rate  10-65Bag/Min  10-60Bag/Min      10-55Bag/Min
 Power

 220V 50/60HZ

 2.2KW

 220V 50/60HZ

 3KW

 220V 50/60HZ

 3KW

 Machine Size  1217*1015*1343MM   1488*1080*1490MM  1780*1350*2050MM
 Machine Quality  About 650KG  About 680KG  About 750KG

fastener

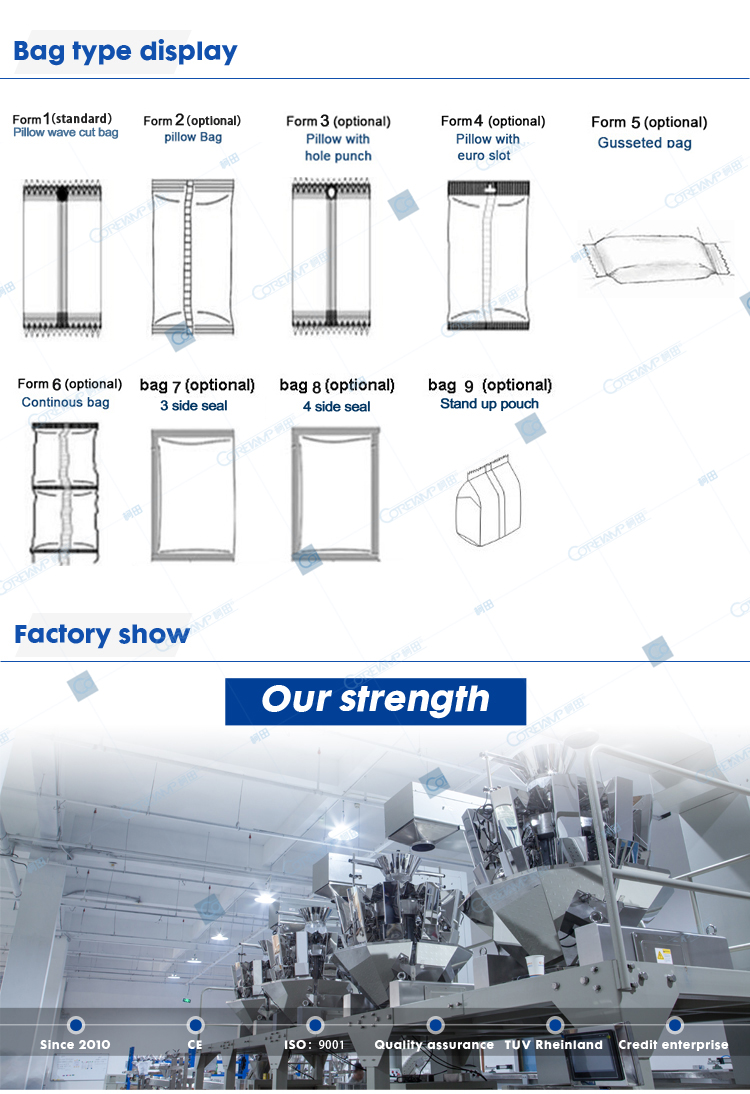

bag type
