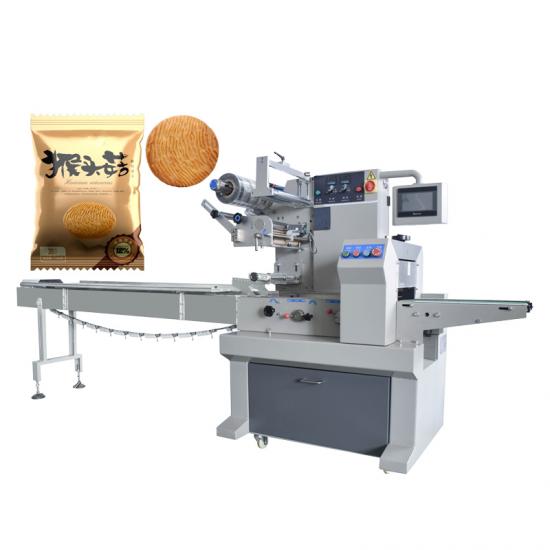

High accuracy Automatic Biscuit/Cookie/Cake packaging machine.

• For Stable Performance: Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.

• For Easy Operation: Touch screen monitor, independant temperature PID controller,
• For Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, etc.

  • Machine type:

    VT-160

  • Packaging speed:

    30-200 bag/min

  • Packaging size:

    60-180mm(width) 60-180mm(length)

  • Machine size:

    (L)3900×(W)785×(H)1450mm

  • Machine material:

    304 stainless steel
Inquiry now Contact us

  • Product Details

High accuracy Automatic Biscuit Cookie Cake packaging machine




Applications:

Packaging various kinds of biscuit,cookies,cake,etc.


Features:

1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.


Techinical Parameters:

Model
 VT-160
film width
 Max.340
bag length
 65-200 or85-240  110-320 or 400mm
bag width
 30-160 mm
product height
 Max 35mm or 55mm
film roll diameter
 max.380mm
packaging rate
 30-200bag/min
power
 220v 50/60Hz 2.6Kw
machine size
 L:3600*W745*1470 mm
machine quality
 about 450KG
remarks
 optional air filling device/optional angle folding device
film material
 optional air filling device/optional angle folding device

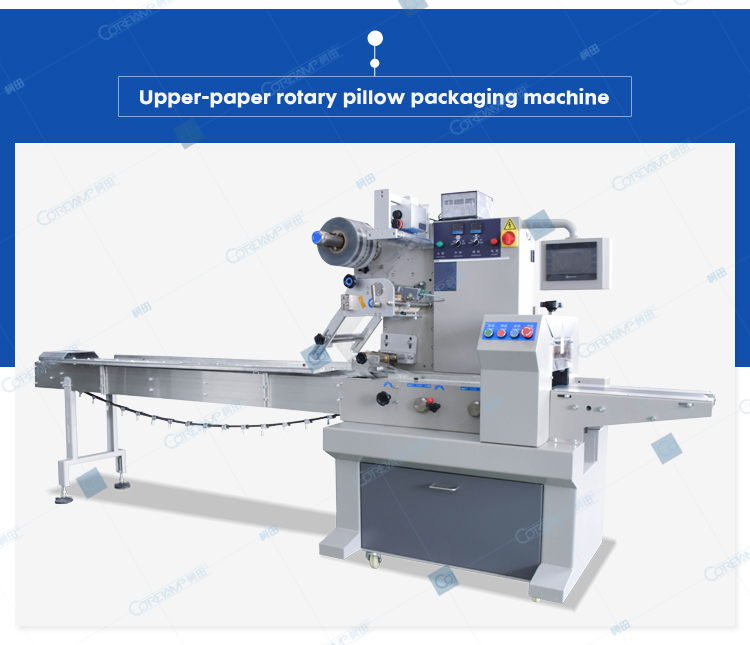

VT-160 Biscuit packaging machine

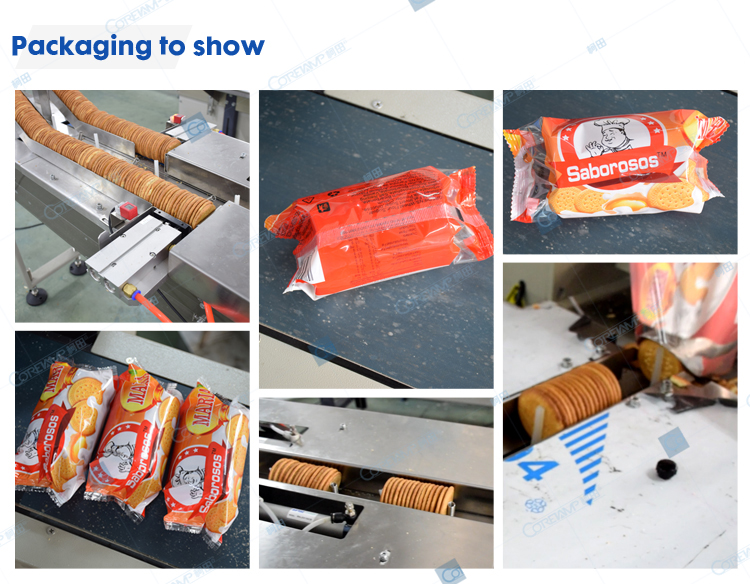

Packaging to show

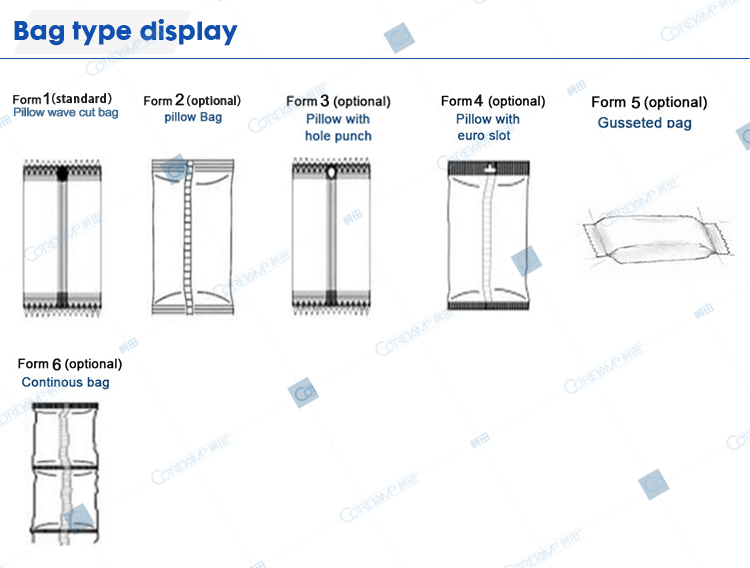

Bag type display

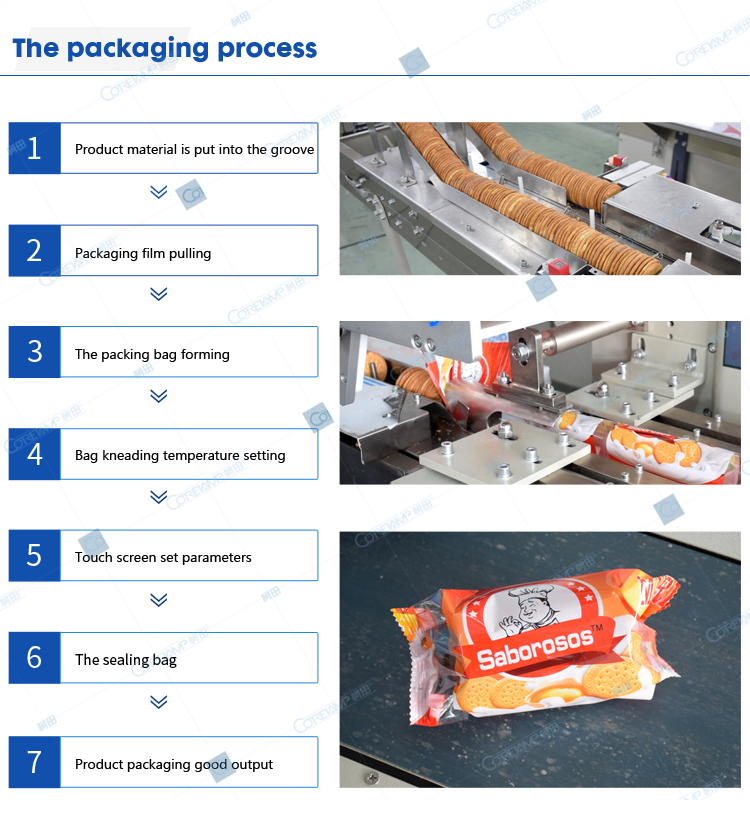

Packaging process

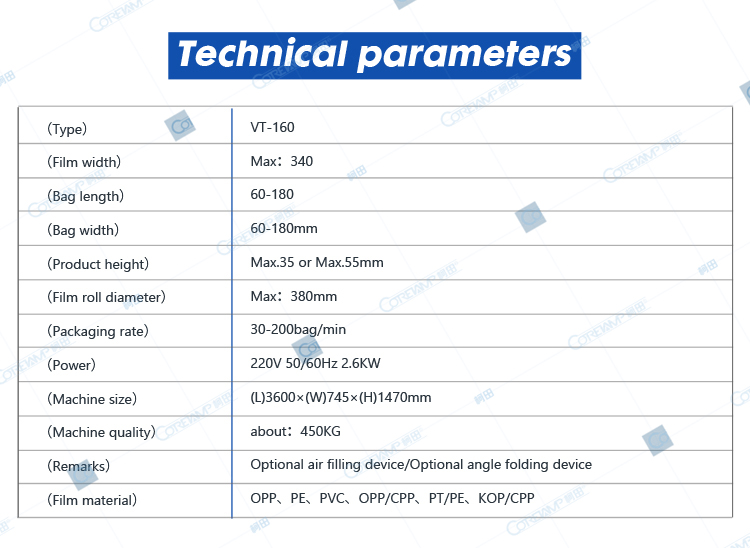

Technical parameters

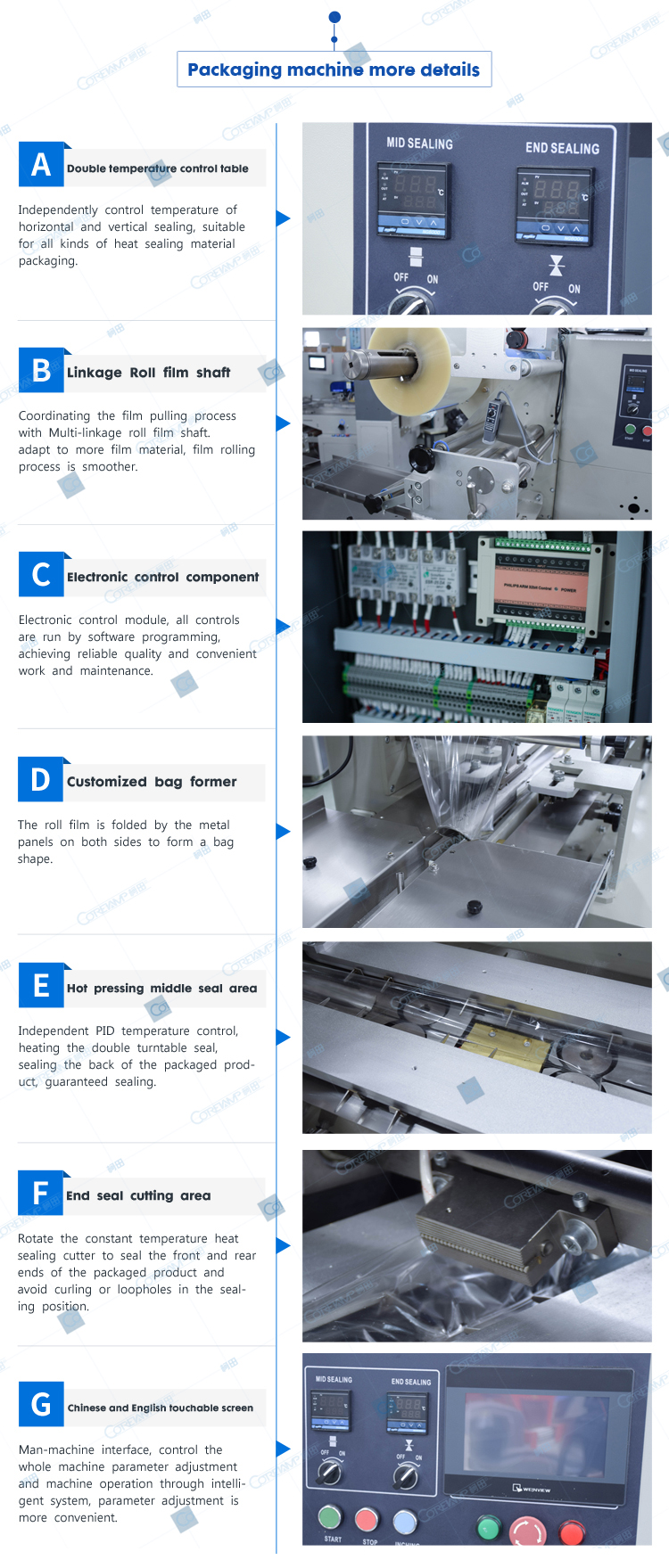

More details


Hot Tags :

Biscuit packaging machine Food packaging machine Cake packaging machine Flow cookie packaging machine Automatic cookie packaging line
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

New Products
related products
Nougat Packaging Machine
Nougat snack cotton candy Packaging Machine

Suitable for snack food packaging such as cotton candy, nougat candy, lollipop, etc.
protein Bars Packing machine
Protein / Chocolate Bars Packing machine Automatic Flow Food Candy/Chocolate/energy/granola

Suitable for packing vairious small goods,materials and food such as Candy/Chocolate/energy/granola/protein Bars Packing machine.
Soap packaging machine
Soap Sponge Flow packaging machine Automatic Kitchen Scrubber Steel wool

Automatic Packaging Machine VT-210X full body stainless steel packaging speed 30-120bags/min.Suitable for packing steel scrubber,bar soap,sponge,steel wool.
Honey spoon packing machine
Honey spoon cutlery packing machine automatic

Suitable for packaging of slender tableware such as honey spoons
Popsicle packaging machine
Horizontal Popsicle ice cream packaging machine

Popsicle packaging machine is used for soft, long, and loose objects that can be packed by packaging machines such as popsicles, ice cream, popsicles, soft candies, biscuits, and fresh fruits.
Toy Packaging Machine
Automatic Toy Packaging Machine knickknack packing machine

This packaging mahcine is suitable for packing toys. Three servo control, Bag length can be set and cut in one step, saving time and film.Colorful touch screen, easy and quick setting and operation.

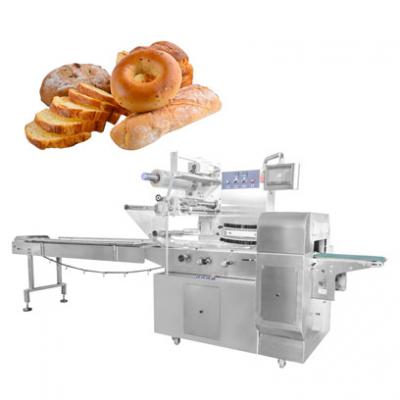

Bread Packaging Machine
