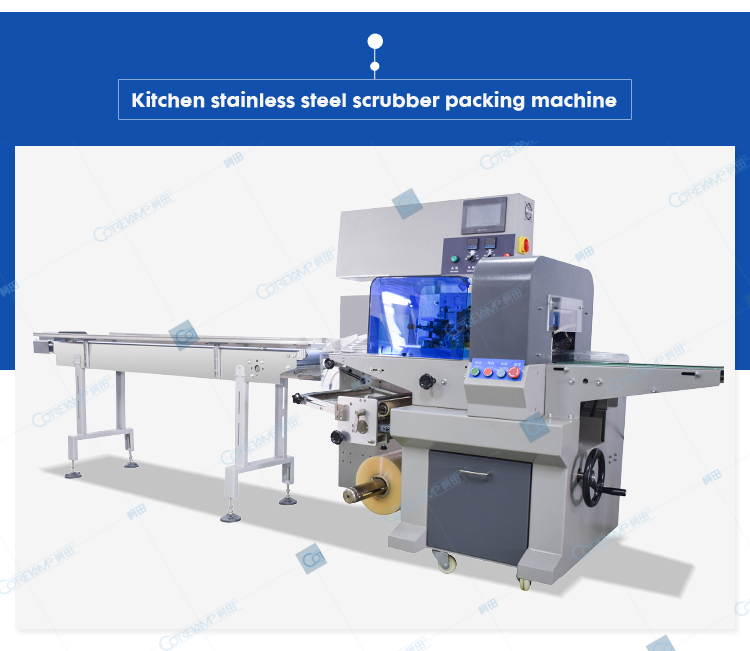

Automatic Packaging Machine VT-210X full body stainless steel packaging speed 30-120bags/min.Suitable for packing steel scrubber,bar soap,sponge,steel wool.
Machine type:
VT-210XPackaging speed:
30-120 bag/MinutesPackaging size:
50-210mmMachine size:
(L)3900×(W)860×(H)1450mmMachine material:
304 stainless steelAutomatic Kitchen Scrubber Steel wool Soap Sponge Flow packaging machine
Applications:
Packaging various kinds of toys.
Features:
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
|
Food Packaging machineTechnical parameters
|
|
| Food Packaging machine(Type) | VT-210X |
| (Film width) | max: 440mm |
| (Bag length) | 100-260 or 150-450 or 160-500mm |
| (Bag width) | 50-210mm |
| (Product height) | Max.68 or Max.85mm |
| (Film roll diameter) | Max:380mm |
| (Packaging rate) | 30-120bag/min |
| (Power) | 220V 50/60Hz 3KW |
| (Machine size) | (L)3900×(W)860×(H)1450mm |
| (Machine quality) | about:550KG |
| (Remarks) |
Optional air filling device/Optional angle folding device (Film material) |
| (Film material) | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP |
Previous :
Beddings Clothing Blanket Towel Packaging MachineNext :
Steel wool packing machine Automatic High speed silicone sheet/padIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
