Popsicle packaging machine is used for soft, long, and loose objects that can be packed by packaging machines such as popsicles, ice cream, popsicles, soft candies, biscuits, and fresh fruits.
Machine type:
VT-160XPackaging speed:
30-200/MinutesPackaging size:
30-160mmMachine size:
L3900×W785×H1450mmMachine material:

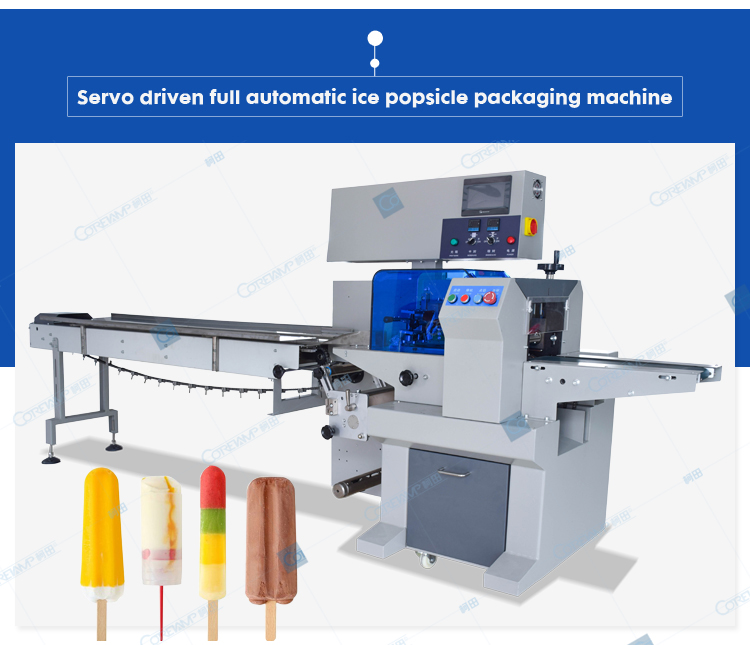

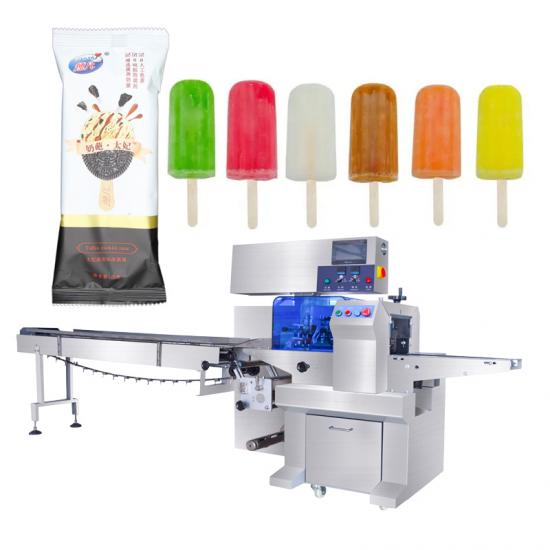

304 stainless steelAutomatic Horizontal Pillow Popsicle ice cream packaging machine VT-160X
Applications:

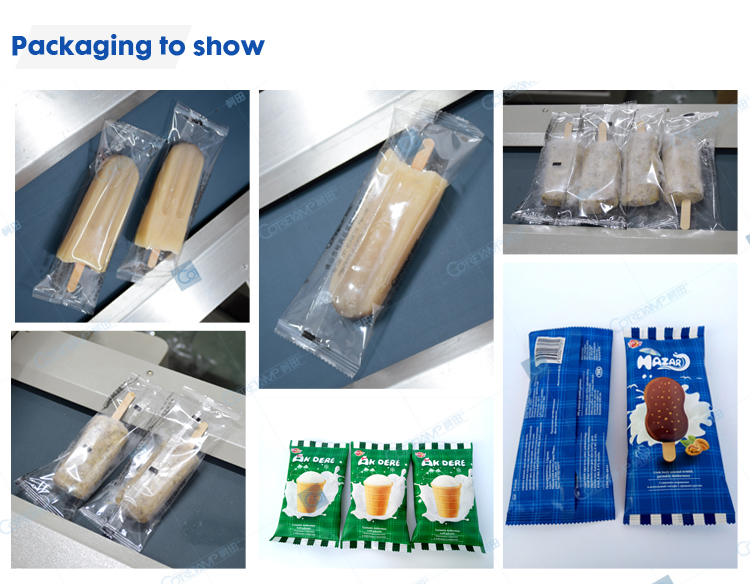

Packaging various kinds of popsicle.
Features:

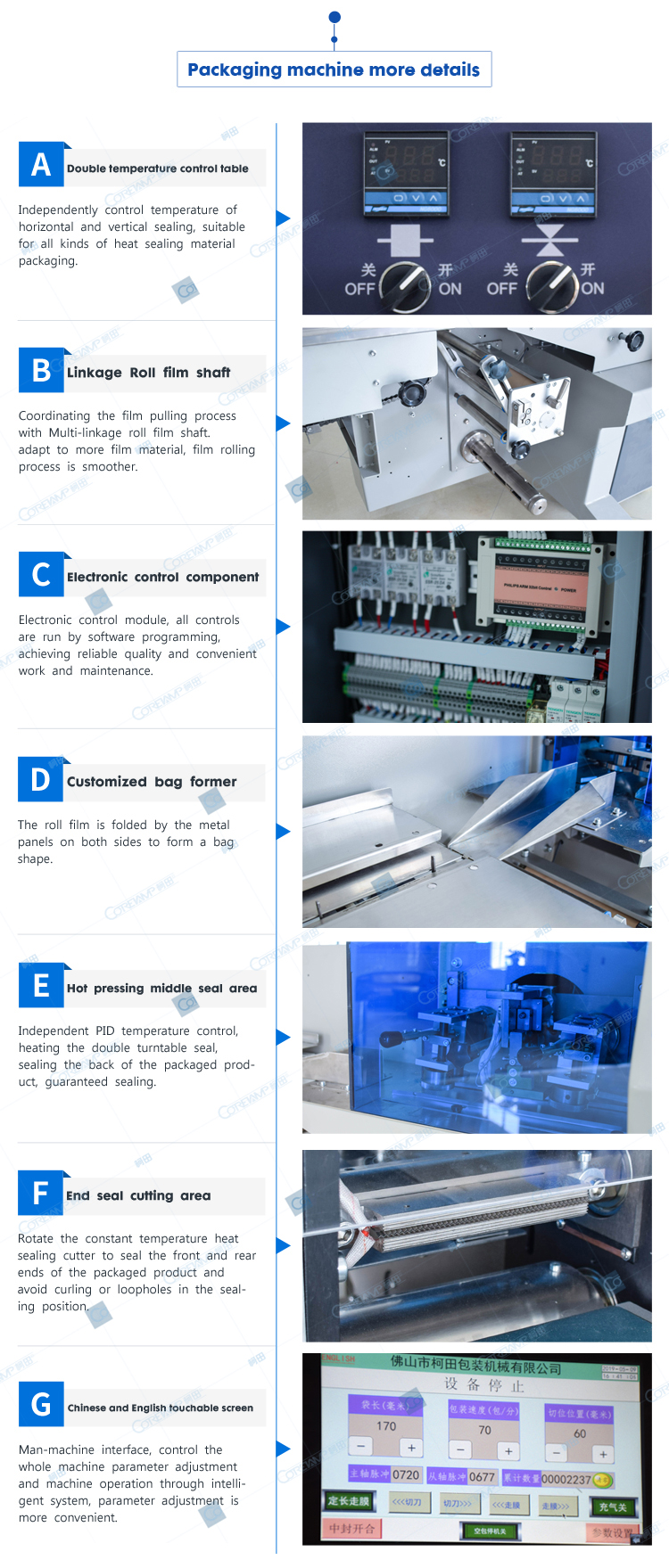

1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.
| Popsicle packaging machine Technical parameters | |
| Popsicle packaging machine(Type) | VT-160X |
| (Film width) | max: 380mm |
| (Bag length) | 65-200 or 85-240 or 140-400mm |
| (Bag width) | 30-160mm |
| (Product height) | Max.35 or Max.55mm |
| (Film roll diameter) | Max:380mm |
| (Packaging rate) | 30-200bag/min |
| (Power) | 220V 50/60Hz 3KW |
| (Machine size) | (L)3600×(W)745×(H)1470mm |
| (Machine quality) | about:450KG |
| (Remarks) |
Optional air filling device/Optional angle folding device (Film material) |
| (Film material) | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP |
