Suitable for snack food packaging such as cotton candy, nougat candy, lollipop, etc.
Machine type:
VT-110CPackaging speed:
50-300 Bag/MinutesPackaging size:
30-110mm(Width) 65-400mm（Length）Machine size:
(L)3600×(W)670×(H)1470mmMachine material:

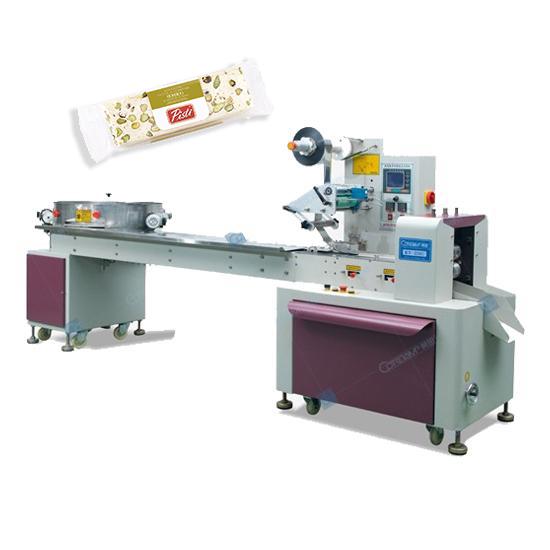

Carbon SteelAutomatic flow type nougat snack cotton candy pillow horizontal wrapping packaging machine
Applications:
Packaging various kinds of candies like nougat.

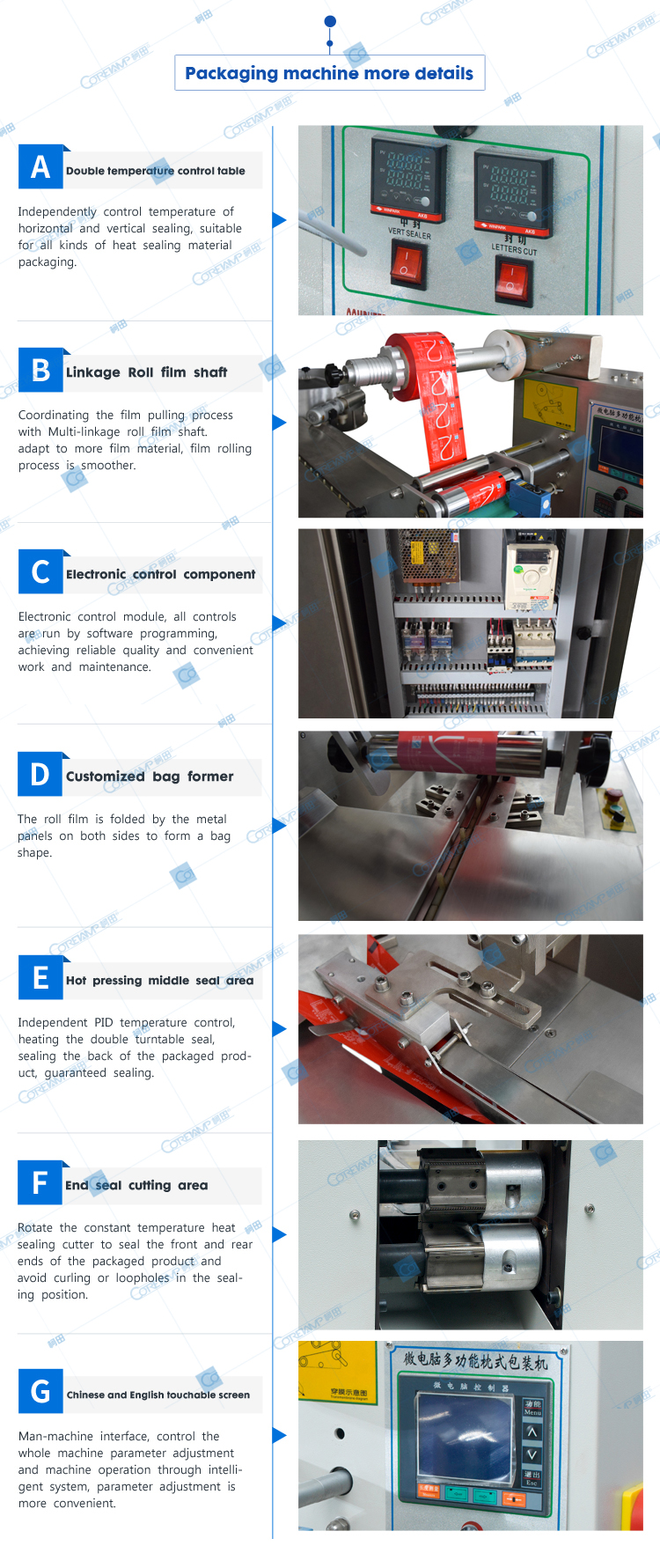

Features:
1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
2. Interface features easy and quick setting and operation.
3. Self failure diagnosis, clear failure display.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packaging different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through software, easy for function adjusting and technical upgrade.

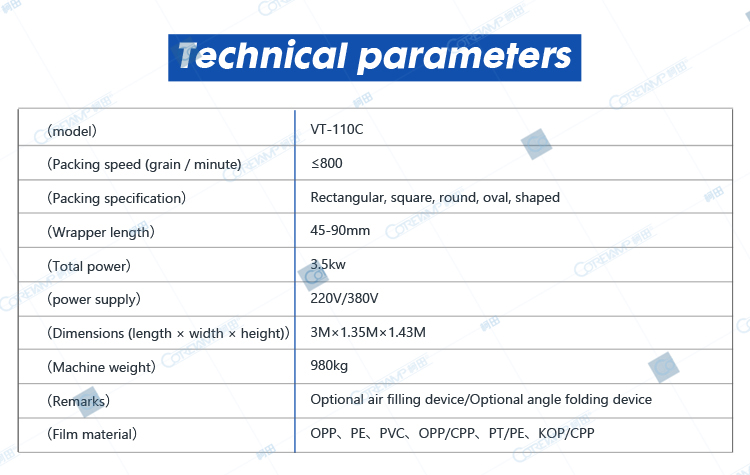

Technical Parameters:
| Type | VT-110C |
| Film width | Max: 240mm |
| Bag length | 65-200 or 85-240 or 110-320 or 140-400mm |
| Bag width | 30-110mm |
| Product height | Max.35 or Max.55mm |
| Film roll diameter | Max: 380mm |
| Packaging rate | 50-300bag/min |
| Power | 220V 50/60Hz 2.6KW |
| Machine size | (L)3600*(W)670*(H)1470mm |
|
Machine quality |
about: 400KG |
| Remarks | Optional air filling device/Optional angle folding device |
| Film material | OPP,PE,PVC,OPP/CPP,PT/PE,KOP/CPP |
Previous :
Napkin/diaper/Tissue packaging machine wet paperNext :
Automatic horizontal High speed 1-50 pieces multiple mask packing BOPP film Face mask KN95 packaging machineIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
